Description

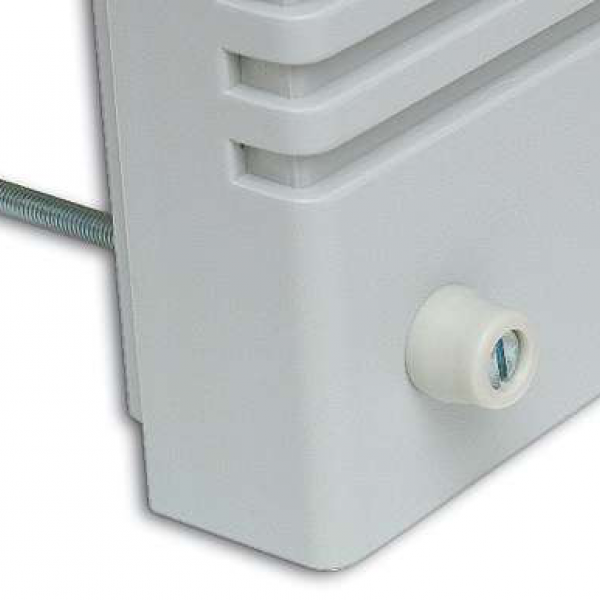

Cases with the front and rear panels moulded in ABS. The base and the cover have integral PCB guides and mounting studs. Closing by four screws.
Details
Products
| |
|---|---|

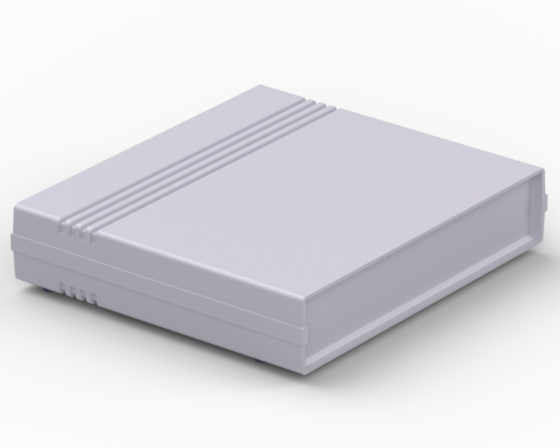

| Model | 861.5 |
| L (mm) | 268 |
| W (mm) | 300 |
| H (mm) | 63 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 282 |
| MAX PCB W (mm) | 230 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

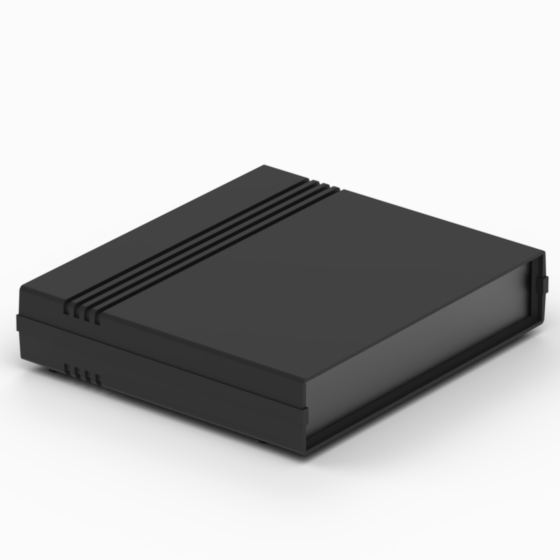

| Model | 861.9 |
| L (mm) | 268 |
| W (mm) | 300 |
| H (mm) | 63 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 282 |
| MAX PCB W (mm) | 230 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

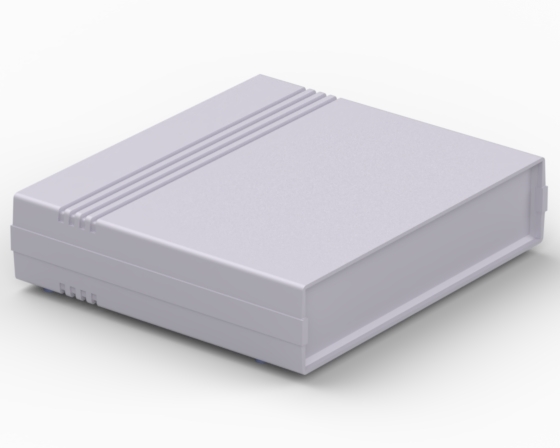

| Model | 862.5 |
| L (mm) | 268 |
| W (mm) | 300 |
| H (mm) | 69,8 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 282 |
| MAX PCB W (mm) | 230 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

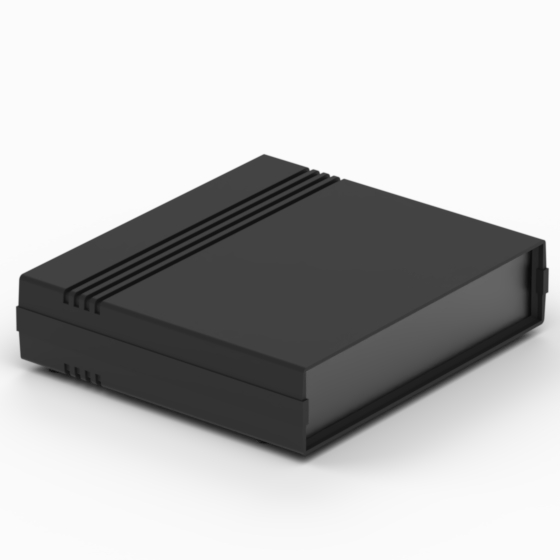

| Model | 862.9 |
| L (mm) | 268 |
| W (mm) | 300 |
| H (mm) | 69,8 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 282 |
| MAX PCB W (mm) | 230 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

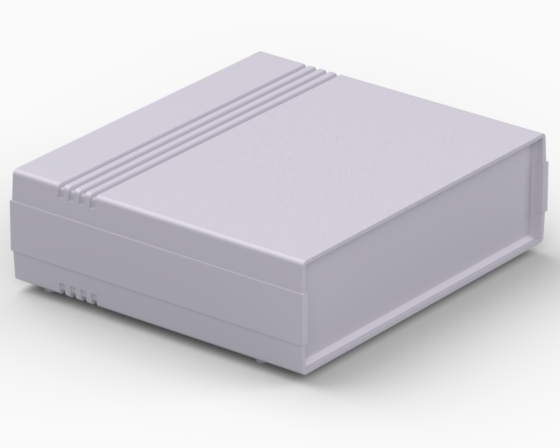

| Model | 863.5 |
| L (mm) | 268 |
| W (mm) | 300 |
| H (mm) | 89,8 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 282 |
| MAX PCB W (mm) | 230 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

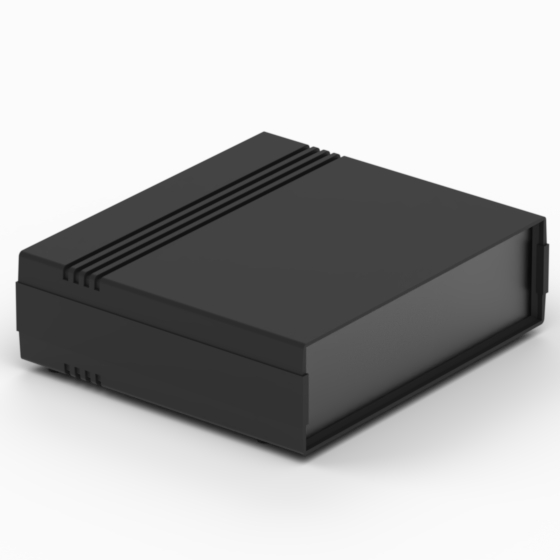

| Model | 863.9 |
| L (mm) | 268 |
| W (mm) | 300 |
| H (mm) | 89,8 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 282 |
| MAX PCB W (mm) | 230 |
| Screws | 4 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
861.5 | 268 | 300 | 63 |
9018 |
AG-ATY | 282 | 230 | 4 | - |
PDF DWG |
View
|
|
|
|
861.9 | 268 | 300 | 63 |
9004 |
P2H-AT | 282 | 230 | 4 | - |
PDF DWG |
View
|
|
|
|
862.5 | 268 | 300 | 69,8 |
9018 |
AG-ATY | 282 | 230 | 4 | - |
PDF DWG |
View
|
|
|
|
862.9 | 268 | 300 | 69,8 |
9004 |
P2H-AT | 282 | 230 | 4 | - |
PDF DWG |
View
|
|
|
|
863.5 | 268 | 300 | 89,8 |
9018 |
AG-ATY | 282 | 230 | 4 | - |
PDF DWG |
View
|
|
|
|
863.9 | 268 | 300 | 89,8 |
9004 |
P2H-AT | 282 | 230 | 4 | - |
PDF DWG |
View
|
