RC

Family Pocket - Electronic enclosures - Plastic

Description

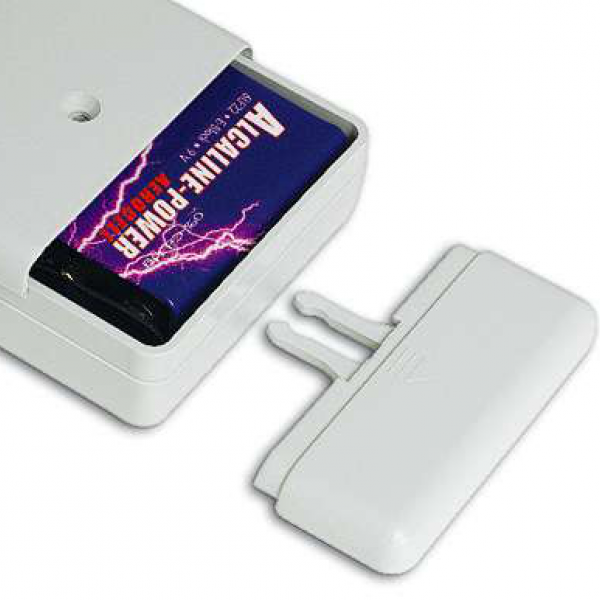

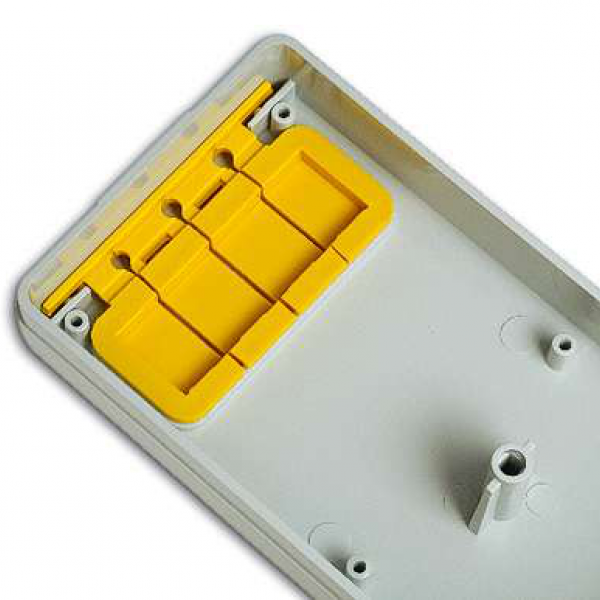

ABS enclosures with rounded corners. 9V battery compartment with a snap sliding lid. The model “RC124” have one, two and four yellow push-buttons set. The model “10009A-B” have on the top a transparent window. Matt surface finish. Closing by only one screw. Upon request stainless steel clip (Mod. CL1).

Details

Products

Model 10009-B.5
L (mm)107
W (mm)60
H (mm)24,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)63
MAX PCB W (mm)52
Screws1
Battery1 x 9V
Accessories CL1
Drawings PDF
DWG
Other
View
Model 10009-B.9
L (mm)107
W (mm)60
H (mm)24,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)63
MAX PCB W (mm)52
Screws1
Battery1 x 9V
Accessories CL1
Drawings PDF
DWG
Other
View
Model 10009A-B.5
L (mm)107
W (mm)60
H (mm)24,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)63
MAX PCB W (mm)52
Screws1
Battery1 x 9V
Accessories CL1
Drawings PDF
DWG
Other
View
Model 10009A-B.9
L (mm)107
W (mm)60
H (mm)24,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)63
MAX PCB W (mm)52
Screws1
Battery1 x 9V
Accessories CL1
Drawings PDF
DWG
Other
View
Model RC124.5
L (mm)107
W (mm)60
H (mm)24,5
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)63
MAX PCB W (mm)52
Screws1
Battery1 x 9V
Accessories CL1
Drawings PDF
DWG
Other
View
Model RC124.9
L (mm)107
W (mm)60
H (mm)24,5
Color (Ral) 9004
Material P2H-AT
MAX PCB L (mm)63
MAX PCB W (mm)52
Screws1
Battery1 x 9V
Accessories CL1
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
10009-B.5 107 60 24,5 9018
AG-ATY 63 52 1 1 x 9V CL1
PDF
DWG
View
10009-B.9 107 60 24,5 9004
P2H-AT 63 52 1 1 x 9V CL1
PDF
DWG
View
10009A-B.5 107 60 24,5 9018
AG-ATY 63 52 1 1 x 9V CL1
PDF
DWG
View
10009A-B.9 107 60 24,5 9004
P2H-AT 63 52 1 1 x 9V CL1
PDF
DWG
View
RC124.5 107 60 24,5 9018
AG-ATY 63 52 1 1 x 9V CL1
PDF
DWG
View
RC124.9 107 60 24,5 9004
P2H-AT 63 52 1 1 x 9V CL1
PDF
DWG
View
