Description

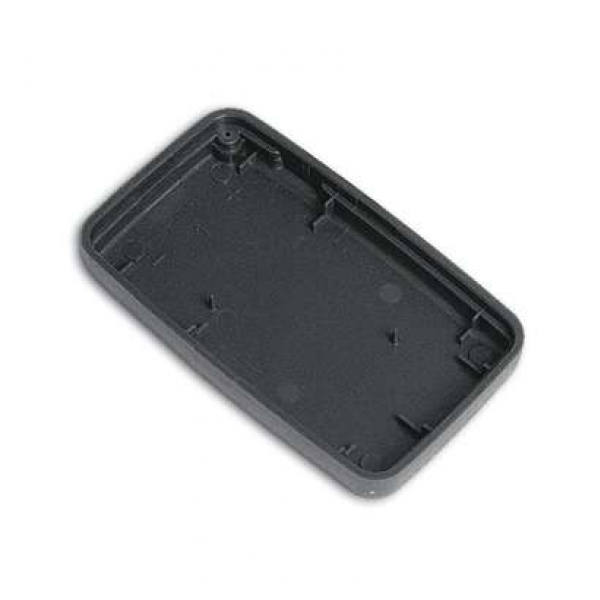

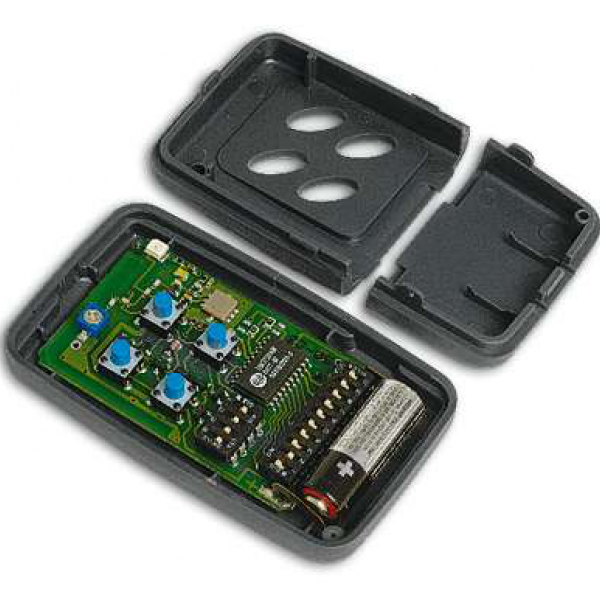

Ergonomic designed ABS enclosures available from one to six push-button configurations. The model “11120” has no buttons. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. ABM). Matt surface finish. Closing either snap-on or by one screw.
Details
Products
| |
|---|---|
| Model | 11120.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 11121.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 11122.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 11123.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 11124.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 11125.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 11126.4 |
| L (mm) | 74,7 |
| W (mm) | 44,1 |
| H (mm) | 18,2 |
| Color (Ral) |
7016 |
| Material | GP40 |
| MAX PCB L (mm) | 47 |
| MAX PCB W (mm) | 33,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
11120.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
11121.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
11122.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
11123.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
11124.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
11125.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
11126.4 | 74,7 | 44,1 | 18,2 |
7016 |
GP40 | 47 | 33,5 | 1 | 1 x 12V |
PDF DWG |
View
|
