TENCLOS

Family Handheld - Electronic enclosures - Plastic

Description

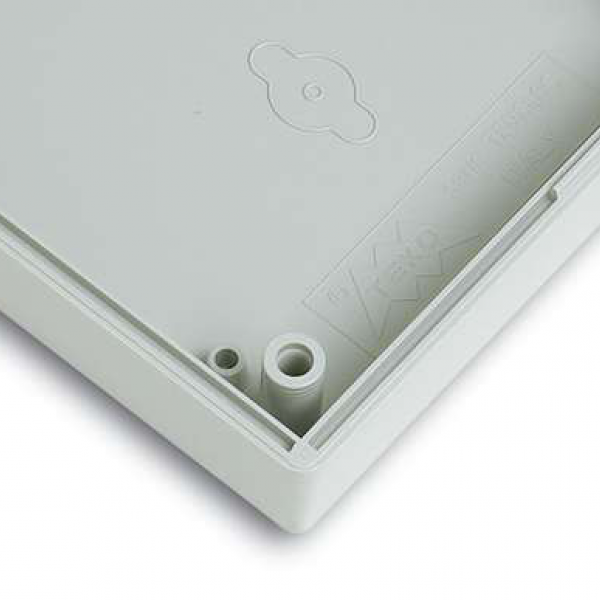

ABS enclosures with a recessed area to allow an 0.5 mm anodised aluminium panel. Base and cover have integral PCB mounting studs. The model “EXP BOX” (only black) has cutouts for three connectors DB25. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs (Mod. MT1).

Details

Products

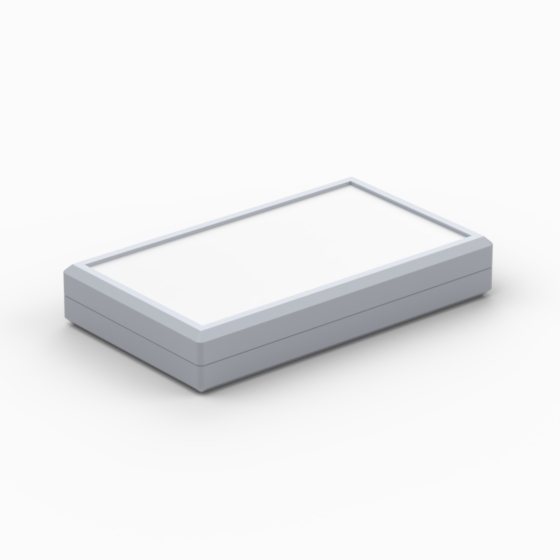

Model 550.5
L (mm)145
W (mm)85
H (mm)25
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View
Model 550.9
L (mm)145
W (mm)85
H (mm)25
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

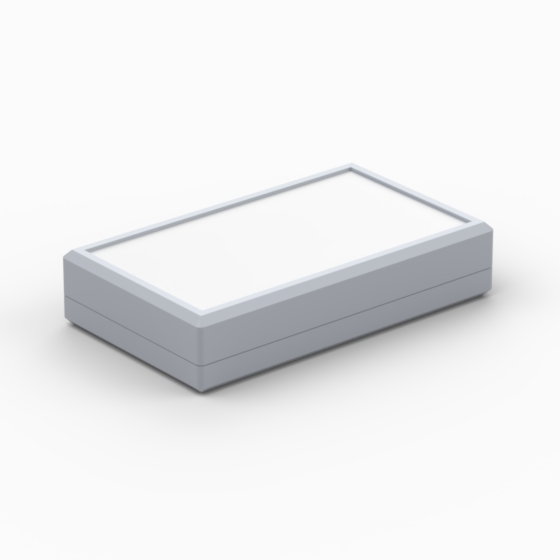

Model 560.5
L (mm)145
W (mm)85
H (mm)31
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

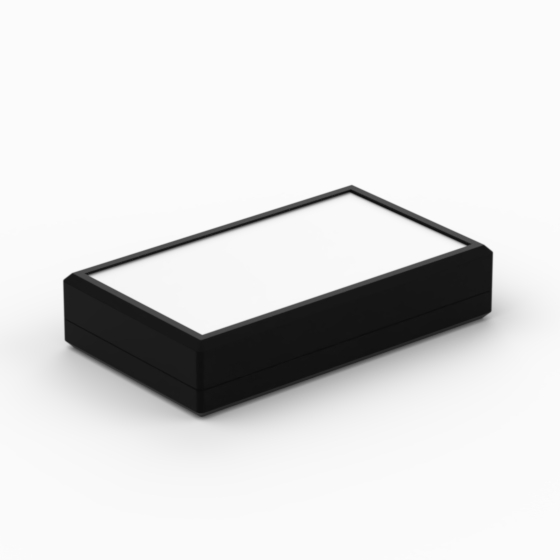

Model 560.9
L (mm)145
W (mm)85
H (mm)31
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

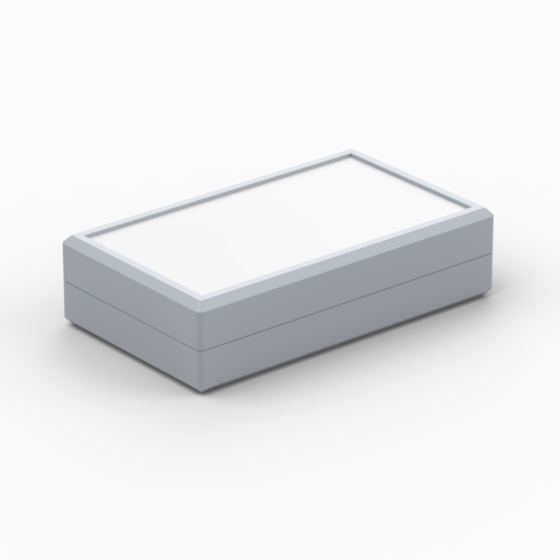

Model 660.5
L (mm)145
W (mm)85
H (mm)37
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

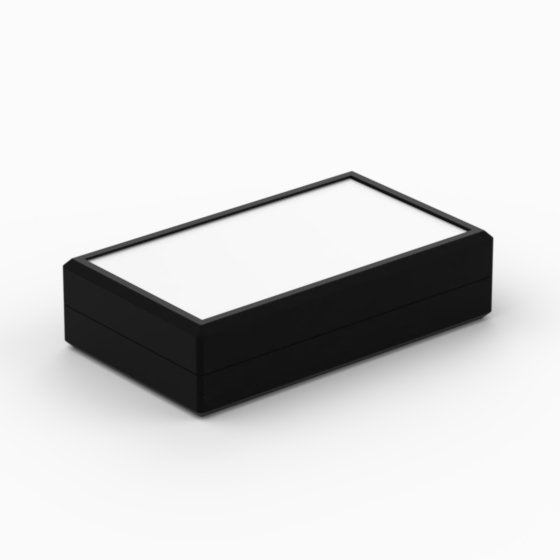

Model 660.9
L (mm)145
W (mm)85
H (mm)37
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

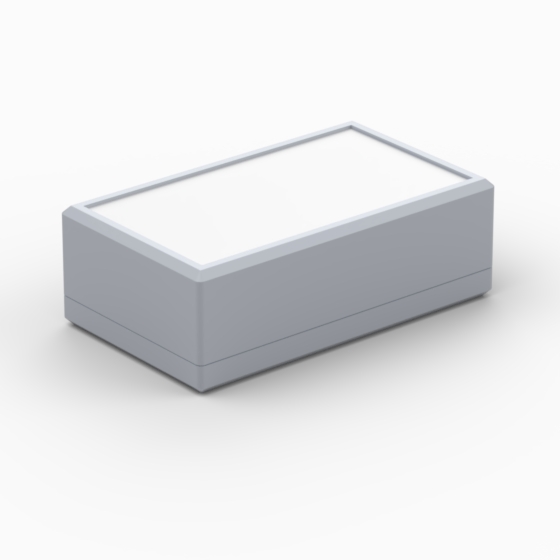

Model 750.5
L (mm)145
W (mm)85
H (mm)49
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

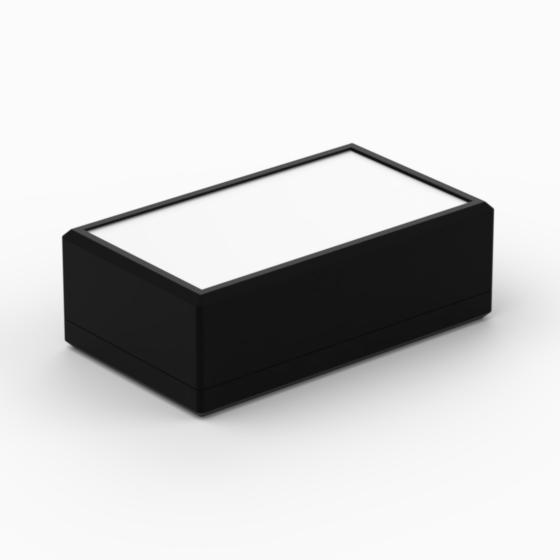

Model 750.9
L (mm)145
W (mm)85
H (mm)49
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

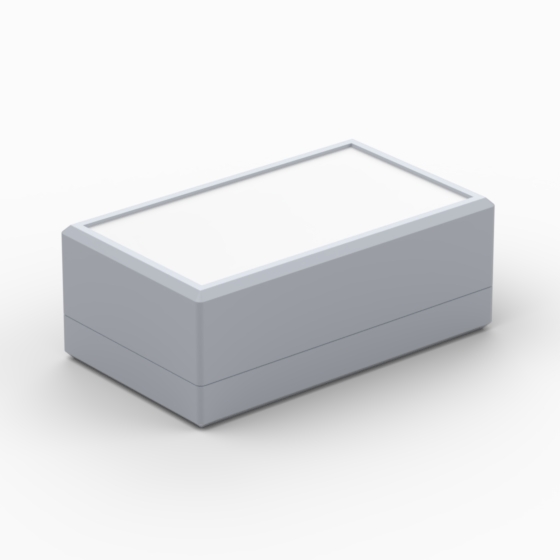

Model 760.5
L (mm)145
W (mm)85
H (mm)55
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View
Model 760.9
L (mm)145
W (mm)85
H (mm)55
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

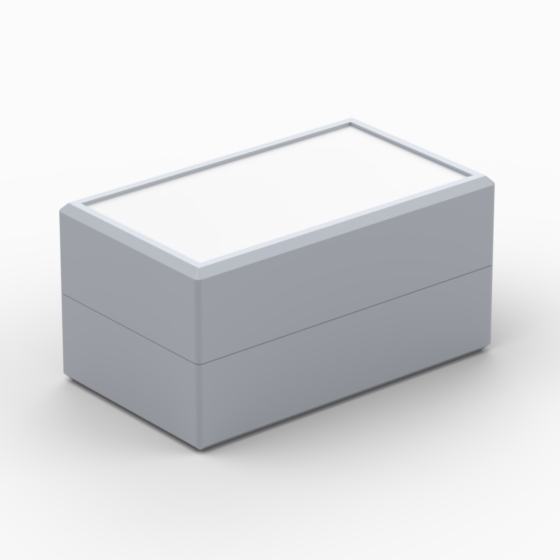

Model 770.5
L (mm)145
W (mm)85
H (mm)73
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

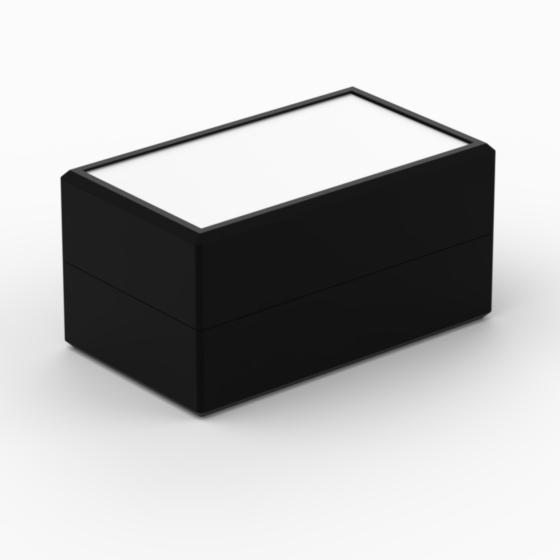

Model 770.9
L (mm)145
W (mm)85
H (mm)73
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)135,2
MAX PCB W (mm)75,2
Screws4
Battery-
Accessories APTB
M
M58
M59
MT1
Drawings PDF
DWG
Other
View

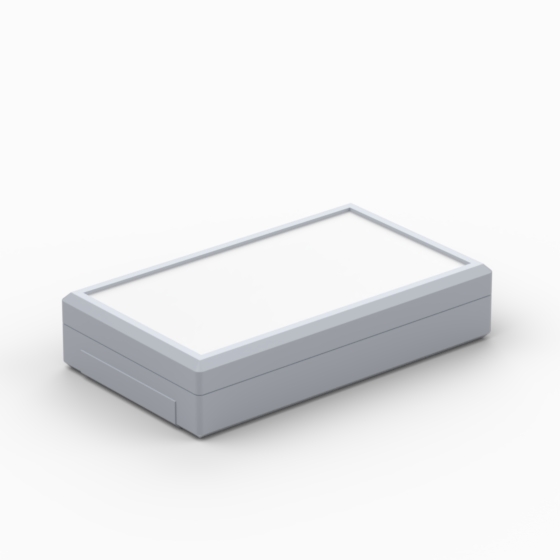

Model 780-B.5
L (mm)145
W (mm)85
H (mm)31
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)97,6
MAX PCB W (mm)75,2
Screws4
Battery1 x 9V
Accessories AB9
APTB
M
M58
M59
Drawings PDF
DWG
Other
View

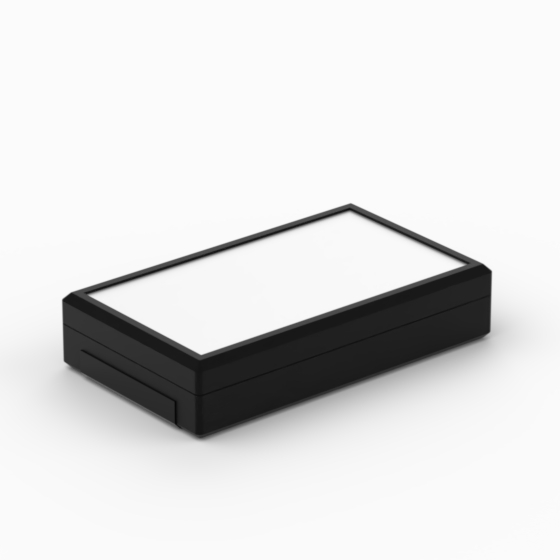

Model 780-B.9
L (mm)145
W (mm)85
H (mm)31
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)97,6
MAX PCB W (mm)75,2
Screws4
Battery1 x 9V
Accessories AB9
APTB
M
M58
M59
Drawings PDF
DWG
Other
View

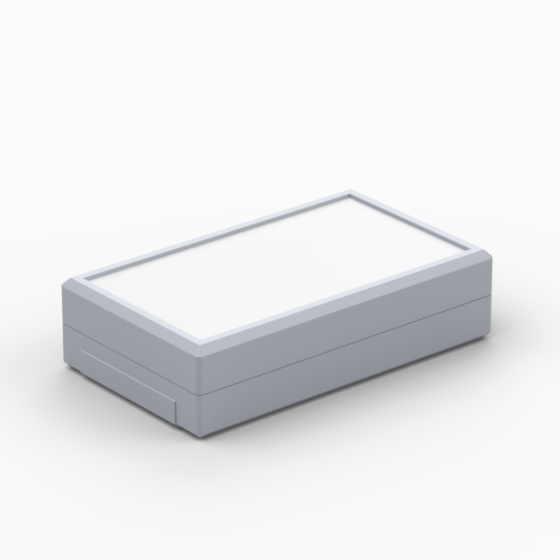

Model 880-B.5
L (mm)145
W (mm)85
H (mm)37
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)97,6
MAX PCB W (mm)75,2
Screws4
Battery1 x 9V
Accessories AB9
APTB
M
M58
M59
Drawings PDF
DWG
Other
View

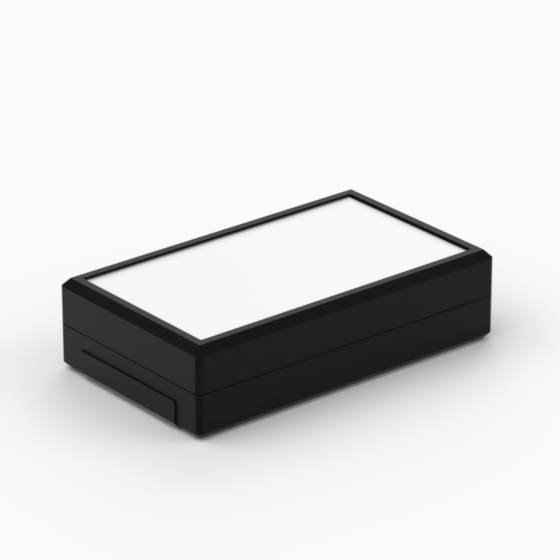

Model 880-B.9
L (mm)145
W (mm)85
H (mm)37
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)97,6
MAX PCB W (mm)75,2
Screws4
Battery1 x 9V
Accessories AB9
APTB
M
M58
M59
Drawings PDF
DWG
Other
View

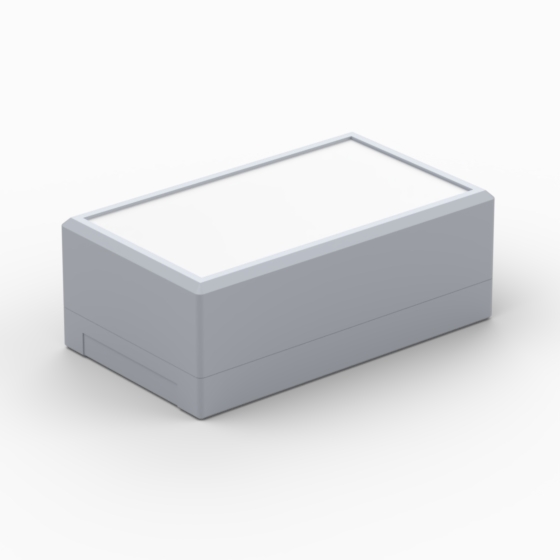

Model 980-B.5
L (mm)145
W (mm)85
H (mm)55
Color (Ral) 9018
Material AG-ATY
MAX PCB L (mm)97,6
MAX PCB W (mm)75,2
Screws4
Battery1 x 9V
Accessories AB9
APTB
M
M58
M59
Drawings PDF
DWG
Other
View

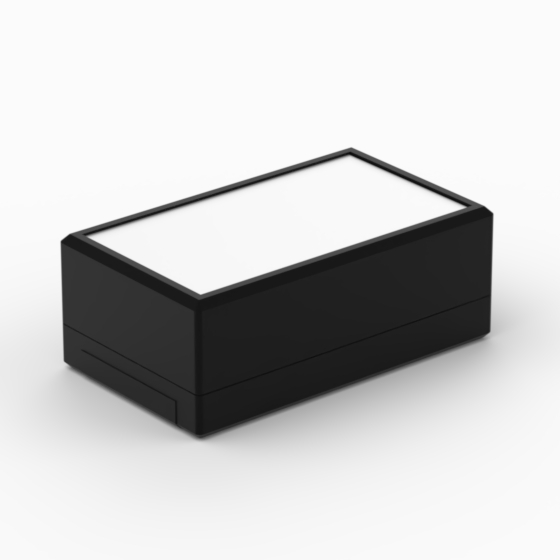

Model 980-B.9
L (mm)145
W (mm)85
H (mm)55
Color (Ral) 9004
Material TERLURAN GP-35
MAX PCB L (mm)97,6
MAX PCB W (mm)75,2
Screws4
Battery1 x 9V
Accessories AB9
APTB
M
M58
M59
Drawings PDF
DWG
Other
View
Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
550.5 145 85 25 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
550.9 145 85 25 9004
TERLURAN GP-35 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
560.5 145 85 31 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
560.9 145 85 31 9004
TERLURAN GP-35 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
660.5 145 85 37 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
660.9 145 85 37 9004
TERLURAN GP-35 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
750.5 145 85 49 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
750.9 145 85 49 9004
TERLURAN GP-35 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
760.5 145 85 55 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
760.9 145 85 55 9004
TERLURAN GP-35 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
770.5 145 85 73 9018
AG-ATY 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
770.9 145 85 73 9004
TERLURAN GP-35 135,2 75,2 4 - APTB
M
M58
M59
MT1
PDF
DWG
View
780-B.5 145 85 31 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
PDF
DWG
View
780-B.9 145 85 31 9004
TERLURAN GP-35 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
PDF
DWG
View
880-B.5 145 85 37 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
PDF
DWG
View
880-B.9 145 85 37 9004
TERLURAN GP-35 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
PDF
DWG
View
980-B.5 145 85 55 9018
AG-ATY 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
PDF
DWG
View
980-B.9 145 85 55 9004
TERLURAN GP-35 97,6 75,2 4 1 x 9V AB9
APTB
M
M58
M59
PDF
DWG
View
