Description

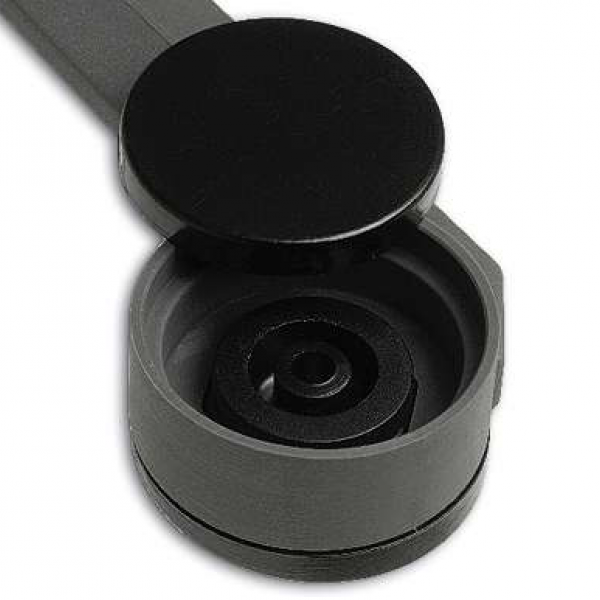

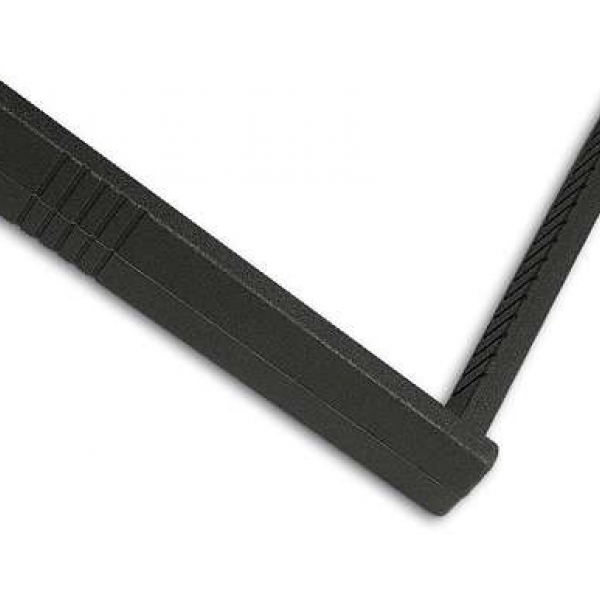

ABS enclosures with a handle that can be locked in any of eight positions and used as a stand. Vented cover and base for aeration. Front and rear 1 mm aluminium panels. Each half-shell has integral PCB guides and mounting studs. Matt surface finish. Closing by eight screws.
Details
Products
| |
|---|---|

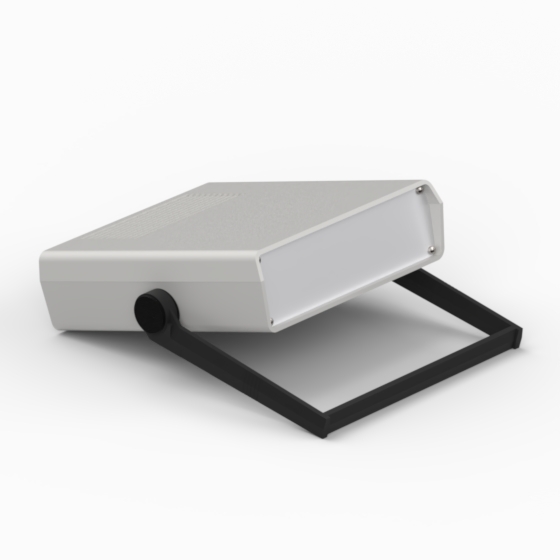

| Model | AUS-41.5 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 54 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

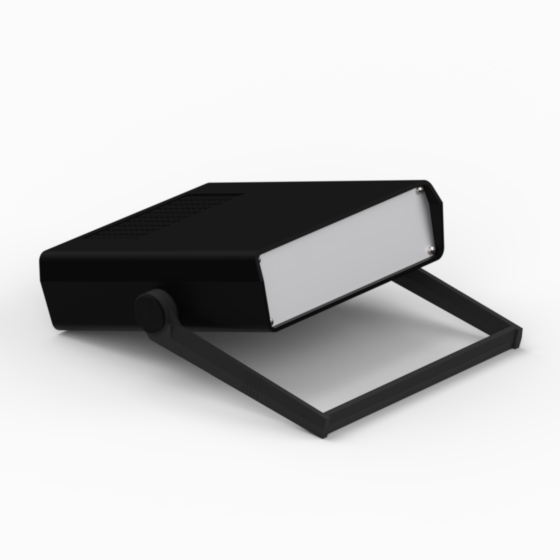

| Model | AUS-41.9 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 54 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

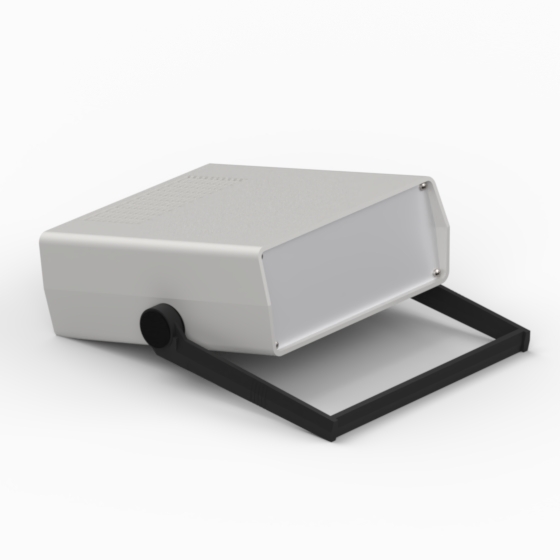

| Model | AUS-44.5 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 72 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

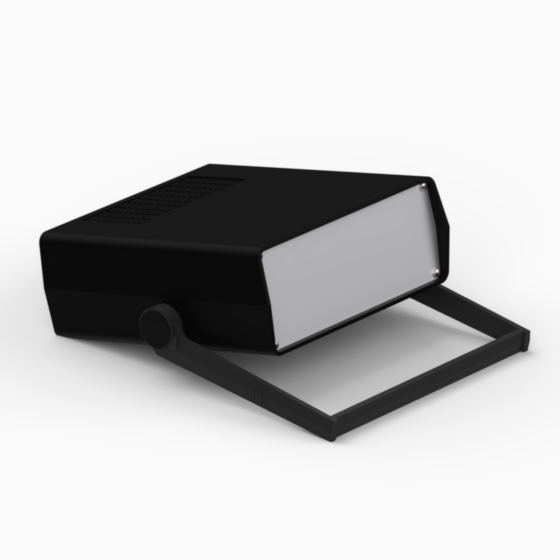

| Model | AUS-44.9 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 72 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

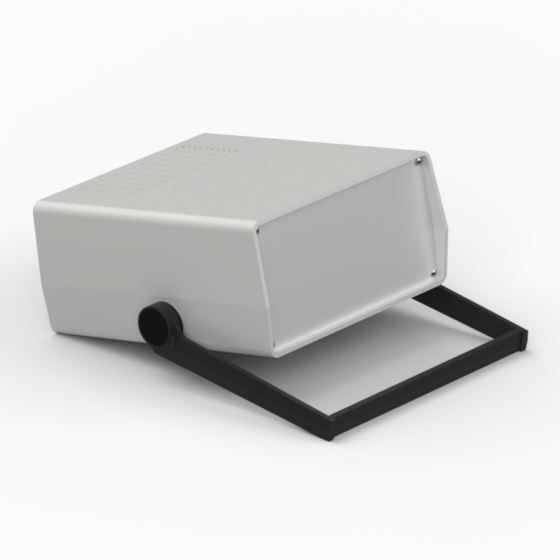

| Model | AUS-45.5 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 90 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

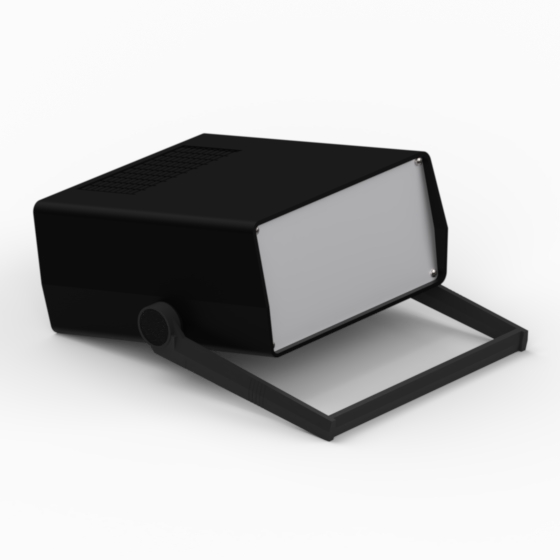

| Model | AUS-45.9 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 90 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

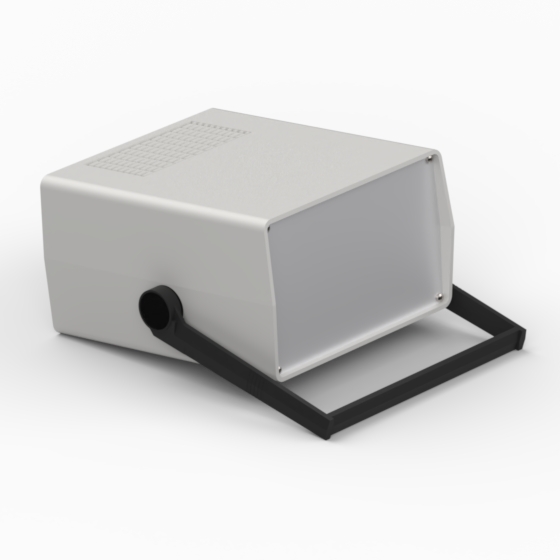

| Model | AUS-55.5 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 108 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

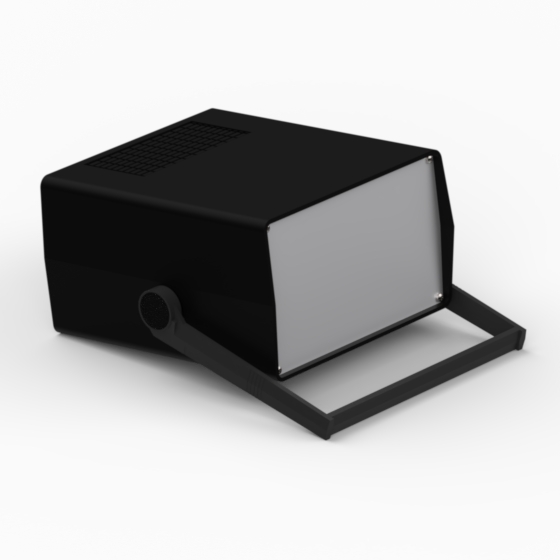

| Model | AUS-55.9 |
| L (mm) | 198 |
| W (mm) | 178 |
| H (mm) | 108 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 170 |
| MAX PCB W (mm) | 162 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

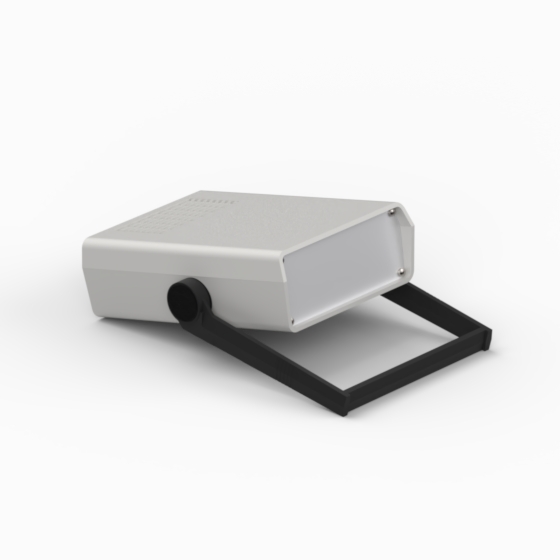

| Model | KL-41.5 |
| L (mm) | 178 |
| W (mm) | 128 |
| H (mm) | 54 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 150 |
| MAX PCB W (mm) | 115 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

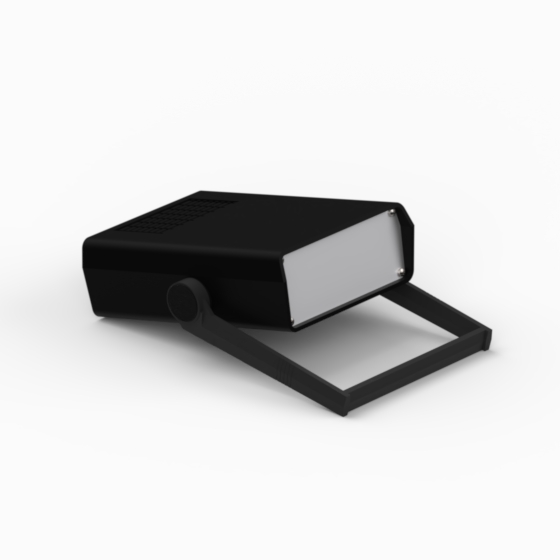

| Model | KL-41.9 |
| L (mm) | 178 |
| W (mm) | 128 |
| H (mm) | 54 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 150 |
| MAX PCB W (mm) | 115 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

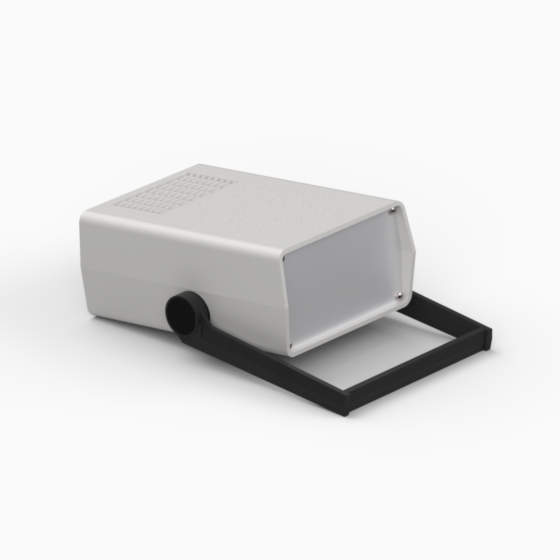

| Model | KL-44.5 |
| L (mm) | 178 |
| W (mm) | 128 |
| H (mm) | 72 |
| Color (Ral) |
9018 |
| Material | AG-ATY |
| MAX PCB L (mm) | 150 |
| MAX PCB W (mm) | 115 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

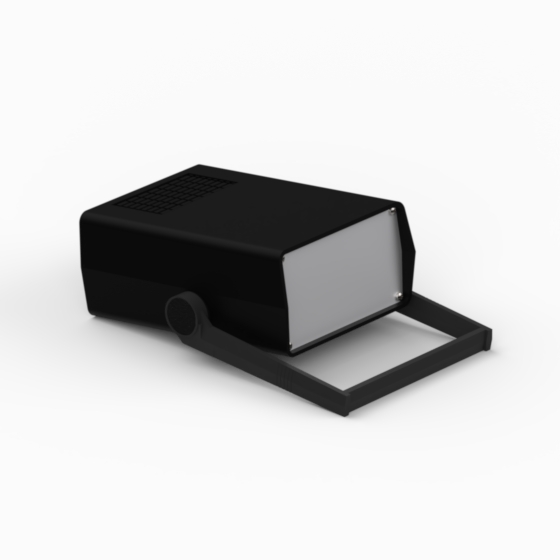

| Model | KL-44.9 |
| L (mm) | 178 |
| W (mm) | 128 |
| H (mm) | 72 |
| Color (Ral) |
9004 |
| Material | P2H-AT |
| MAX PCB L (mm) | 150 |
| MAX PCB W (mm) | 115 |
| Screws | 8 |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AUS-41.5 | 198 | 178 | 54 |
9018 |
AG-ATY | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-41.9 | 198 | 178 | 54 |
9004 |
P2H-AT | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-44.5 | 198 | 178 | 72 |
9018 |
AG-ATY | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-44.9 | 198 | 178 | 72 |
9004 |
P2H-AT | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-45.5 | 198 | 178 | 90 |
9018 |
AG-ATY | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-45.9 | 198 | 178 | 90 |
9004 |
P2H-AT | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-55.5 | 198 | 178 | 108 |
9018 |
AG-ATY | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
AUS-55.9 | 198 | 178 | 108 |
9004 |
P2H-AT | 170 | 162 | 8 | - |
PDF DWG |
View
|
|
|
|
KL-41.5 | 178 | 128 | 54 |
9018 |
AG-ATY | 150 | 115 | 8 | - |
PDF DWG |
View
|
|
|
|
KL-41.9 | 178 | 128 | 54 |
9004 |
P2H-AT | 150 | 115 | 8 | - |
PDF DWG |
View
|
|
|
|
KL-44.5 | 178 | 128 | 72 |
9018 |
AG-ATY | 150 | 115 | 8 | - |
PDF DWG |
View
|
|
|
|
KL-44.9 | 178 | 128 | 72 |
9004 |
P2H-AT | 150 | 115 | 8 | - |
PDF DWG |
View
|
